Concrete Floor Thickness Guidelines for Car Hoist Setup

Critical Considerations for Installing a Car Hoist in Your Garage

When planning to install a car hoist in your garage, it's essential to ensure that your concrete floor meets all necessary specifications. A robust and stable foundation is not merely important for the effective operation of the hoist, but it is also vital for the safety of both your vehicles and any individuals operating the equipment. By preparing adequately and adhering to guidelines, you can significantly improve both the performance and longevity of your car hoist system, making it a valuable addition to your garage.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is crucial as it allows for the even distribution of the weight from both the vehicle and the hoist, which helps minimise the risk of any potential cracking or sinking over time. For more heavy-duty hoists, it is wise to consider a thicker concrete slab, potentially reaching up to 150mm (6 inches), to guarantee optimal performance and safety during operation.

Comprehensive Steps to Determine the Necessary Concrete Thickness for Your Car Hoist

Determining the thickness of your concrete floor is a critical aspect of the safe installation and operation of a car hoist. A variety of factors must be taken into account when assessing the appropriate depth for your slab to ensure it can adequately support the loads it will bear during use. Understanding these factors can help you avoid expensive errors and significantly enhance the safety of your garage setup.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert considerable stress on the concrete floor below them, making it essential to understand the total weight that your concrete floor must support. This consideration includes not only the weight of the vehicle but also the hoist itself, which can add a substantial load to the floor. Calculating these weights is crucial for ensuring the integrity of your installation.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Furthermore, it is wise to incorporate extra weight as a safety buffer, ensuring that the structure can handle unforeseen circumstances and loads that may arise during operation.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is generally sufficient. However, if you plan on lifting significantly heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability throughout the operation of the hoist.

Consulting with a structural engineer is a prudent step. Their expertise can provide tailored advice and help you calculate the precise thickness needed based on your specific circumstances and requirements, ensuring a safe and effective installation.

Understanding the Varied Concrete Thickness Requirements for Different Car Hoist Types

It is crucial to recognise that different types of car hoists come with distinct requirements concerning concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners aiming to integrate a car hoist into their garage setup. Understanding their specific needs is essential for a successful installation.

Two-post lifts usually exert pressure on specific points, which necessitates a thicker concrete slab, typically around 150 mm or more, to adequately accommodate the concentrated load they produce.

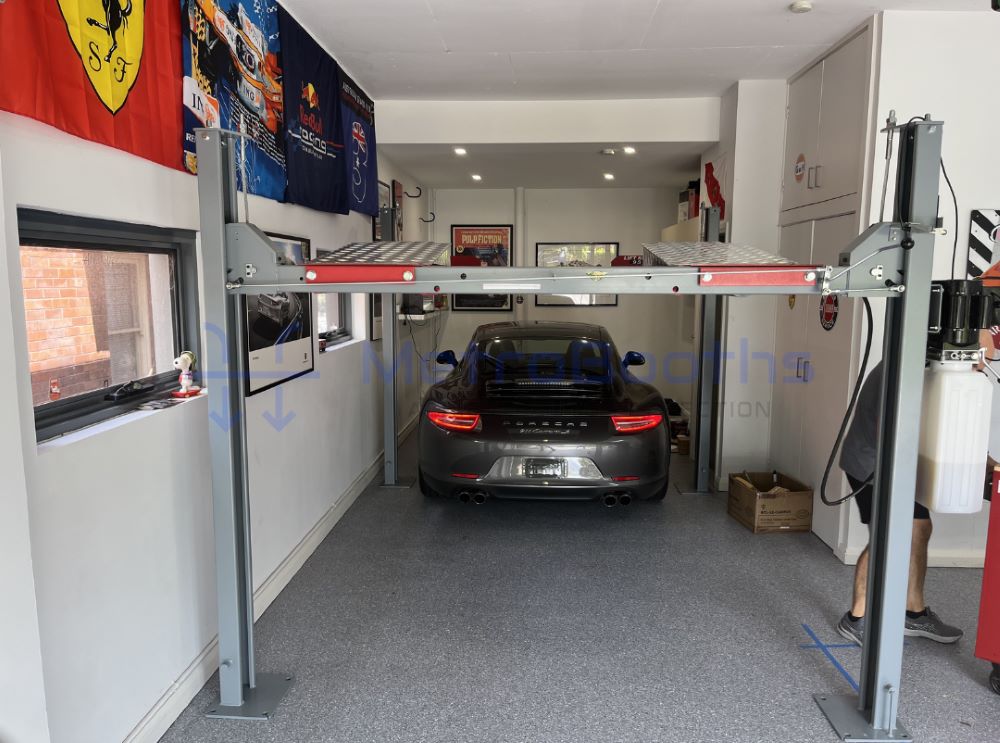

In contrast, four-post lifts distribute weight more evenly over a larger area, allowing them to function effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This understanding is vital for your planning and installation process, ensuring that you choose the right hoist for your garage.

Always refer to the manufacturer's specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Following these guidelines is critical for achieving optimal performance and longevity from your hoist.

Bear in mind that these recommendations serve as general guidelines. Your specific needs may vary depending on your garage layout and the types of vehicles you intend to lift, so tailor your approach accordingly.

Recognising the Importance of Concrete Strength and Reinforcement Methods

The strength of your concrete is just as essential as its thickness. Stronger concrete can often be successfully utilised at a thinner depth while still providing adequate support for heavy loads. This is particularly significant in the context of a car hoist installation, where reliability is paramount.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry professionals recommend opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting, ensuring safety and durability.

Incorporating reinforcement techniques is vital for significantly enhancing the durability of your concrete. Adding steel mesh or rebar can significantly improve the overall strength of your concrete floor, allowing you to opt for a thinner slab while still ensuring it can effectively support heavy loads during operation.

For most home garages, SL82 mesh represents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, making it an excellent choice for budget-conscious homeowners.

If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can help mitigate the formation and propagation of small cracks over time, thus enhancing the longevity of your installation and maintaining its integrity.

Essential Installation Factors for Achieving Optimal Car Hoist Performance

When installing a car hoist, meticulous site preparation and consistent floor maintenance are of paramount importance. By paying attention to concrete specifications and ensuring proper floor care, you can secure the safe and prolonged operation of your hoist, ultimately safeguarding your investment and enhancing the efficiency of your garage.

Crucial Site Preparation and Concrete Pouring Techniques for Effective Car Hoist Installation

Prior to the installation of your car hoist, it is imperative to confirm that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and devoid of any cracks to ensure optimal performance and safety during use. Proper preparation is key to a successful installation.

For new concrete pours, it is essential to employ steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability during operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide recommendations.

Critical Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist is installed, it’s crucial to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality and safety of your hoist.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan and maintaining a safe working environment.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage, which is vital for your peace of mind.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Common Questions Regarding Car Hoist Installation and Concrete Thickness Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, providing clarity for prospective installers.

What is the Minimum Concrete Thickness Required for a Two-Post Lift Installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation, ensuring reliability.

What Specifications Must a Concrete Slab Meet for a Four-Post Hoist Installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It’s wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing peace of mind during use.

Is it Safe to Install a Car Hoist on a Concrete Floor That is Less Than 100mm Thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation and reliability.

What Slab Thickness is Generally Recommended for Vehicle Lift Systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, guaranteeing effective operation.

What Weight Can a 100mm Thick Concrete Floor Support During Hoist Operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring safety.

What Factors Should Be Considered When Calculating Concrete Thickness for Heavy Lifting Equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart decision. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, providing you with the best possible outcome for your garage.
