Flat Metal Roof Leaking Issues Explained

Recognising and Addressing Common Issues Associated with Flat Roofs in Central Coast Properties

Although flat roofs may not dominate the Australian roofing market, their adoption is steadily increasing among both residential and commercial buildings. These roofs frequently feature on patios, carports, walkways, and other areas that require low-pitched roofing solutions. With minimal slopes, flat roofs can also be classified as ” skillion roofs,” allowing for versatile design options.

Flat roofs come with numerous advantages, yet they also present unique challenges that homeowners need to be aware of. Gaining insight into the common problems associated with flat roofing systems and employing effective strategies to mitigate them is crucial, especially on the Central Coast, where the coastal climate, heavy rainfall, and salt-laden air exacerbate roofing complications.

What Factors Are Driving the Increased Popularity of Flat Roofs Among Homeowners?

The growing appeal of flat roofs in both residential and commercial constructions can be attributed to several compelling factors:

• They are quicker and simpler to install, contributing to faster project completion timelines
• They provide easier maintenance access, streamlining routine inspections and repairs
• They create ideal platforms for solar panel installations, promoting energy efficiency and sustainability

The most significant concern regarding flat roofs revolves around effectively managing water drainage. Water is the primary adversary of your roofing system. When planning a new roof installation or updating an existing structure, it is essential to consider numerous factors, particularly rainfall, which can vary greatly across Australia's diverse regions.

What Are the Major Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs that enable rainwater to flow swiftly into gutters, flat roofs feature a limited slope. This design can lead to water accumulation that persists for prolonged periods. If water is not efficiently directed away from the roof, it may result in:

• Surface staining and deterioration of roofing materials
• Progressive structural weakening of roofing components
• Accumulation of mould and mildew, posing potential health hazards
• Leaks that may infiltrate the building's interior

The solution to these challenges lies in effective roof plumbing and strategic design that addresses the specific challenges posed by flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Performance

Prior to installation, a qualified roofing contractor will evaluate several critical factors impacting drainage efficiency:

• The intensity of local rainfall and prevailing weather conditions
• The overall roof area and accurate dimensions
• Gutter configurations and effective drainage outlets
• Specifications and dimensions of downpipes
• Overflow prevention measures to manage excess water
• Considerations regarding roof pitch to improve drainage performance

Most roofing manufacturers advise a minimum slope of 5° for low-pitch roofs. Roofs with a slope of less than this can jeopardise waterproofing efforts and may even void product warranties, leading to potentially costly repairs in the future.

Standard corrugated roofing sheets, while suitable for pitched roofs, are not appropriate for very low-pitch applications. For flat roofs, specific roofing profiles designed for efficient water shedding are highly recommended to ensure longevity and performance.

Uncovering the Best Metal Roofing Profiles for Low-Pitch and Flat Roof Applications

Among the most highly recommended roofing profiles for low-pitch and flat roofs are:

Trimdek: This versatile profile is appropriate for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove enhance water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile utilises hidden clips instead of screws for securing sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent choice for low-pitch installations.

Selecting the right roofing profile based on your roof pitch and local rainfall conditions is vital for ensuring the durability and reliability of your roofing system.

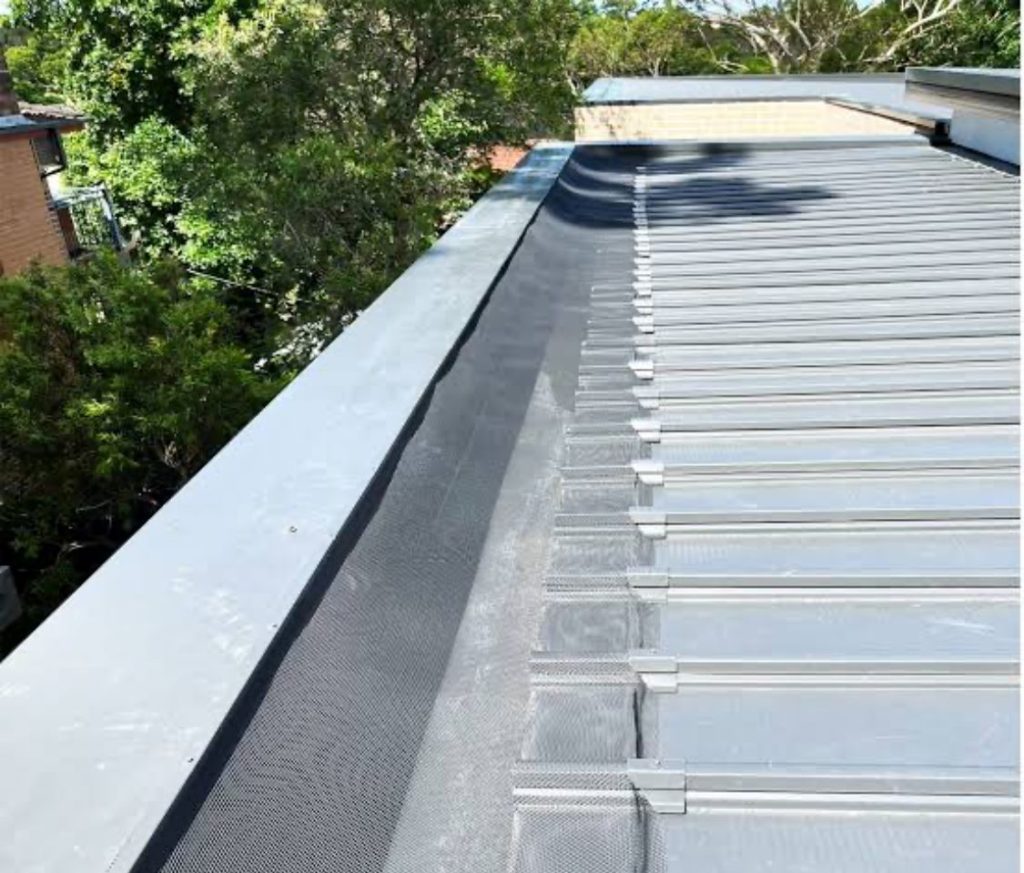

How to Effectively Manage Box Gutters and Drainage on Flat Roofs

On flat roofs, box gutters are frequently employed to connect roof panels to drainage outlets. Positioned below the roof plane, box gutters require meticulous detailing and installation to avoid blockages and prevent water back-up issues.

Common challenges linked to box gutters include:

• The accumulation of debris from surrounding trees and foliage
• Improper fall or slope that inhibits water flow
• Overflowing back into the roof structure, causing leaks
• Blocked downpipes that hinder effective drainage

Addressing these challenges begins with proper gutter design and a commitment to routine maintenance to ensure optimal functionality.

What Key Considerations Should You Keep in Mind When Choosing Guttering for Your Flat Roof?

Standard gutters often fall short in accommodating the water flow requirements of flat roofs. It is typically necessary to install guttering designed to handle increased water capacities. Next, we will explore various drainage and overflow options that can be integrated into your flat metal roof design.

• Facilitate quicker water removal during periods of heavy rainfall
• Effectively sweep away debris with high flow capabilities
• Provide easier cleaning and maintenance solutions for homeowners

Our top recommendation for gutters is self-cleaning designs, which are perfect for flat metal roofs while also offering an aesthetically pleasing appearance!

We advocate for a half-round gutter due to its superior water-carrying capacity, which enables faster drainage. This design effectively removes silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

To achieve optimal performance on flat roofs, gutters must be appropriately sized according to local rainfall patterns and connected to adequately sized downpipes (for example, 100mm × 75mm) that can manage substantial water volumes. In areas with many trees, installing leaf diverters or guards can greatly reduce blockage issues.

How Flashings Are Essential in Preventing Water Ingress at Roof Joints

Flashings are critical components that are installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation becomes even more crucial, as water can accumulate around these joints if they are not securely sealed.

To effectively prevent water ingress:

• Flashings must be meticulously shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra attention is required at corners and seams where water is prone to collect

By ensuring that flashings and sealants are installed correctly, you can create a water-tight roof, even during heavy rainfall. Our team takes additional precautions during installation and utilises high-quality waterproof sealant to prevent water from pooling in these vulnerable areas.

Why Is Consistent Maintenance Vital for the Longevity of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require regular inspections and maintenance to ensure their efficacy. This involves:

• Removing debris from gutters and box gutters to ensure unobstructed drainage
• Checking downpipes for any signs of potential blockages
• Inspecting roof surfaces for small cracks or areas where water may pond
• Re-sealing flashings as necessary to maintain waterproof integrity

Conducting routine maintenance checks can prevent the need for more extensive repair work down the line, thereby extending the lifespan of your roofing system.

Explore the Advantages of Expertly Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs provide:

• A contemporary, sleek architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising utility and functionality
• Convenient access for maintenance or solar panel installation, simplifying upkeep and management

Moreover, flat roofs can effortlessly integrate with existing pitched roof structures when drainage and detailing are managed correctly, improving the overall functionality and appearance of the building.

How to Ensure You Obtain the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can deliver both functionality and lasting durability within the coastal environment. Whether you are embarking on a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is essential for optimal performance and longevity.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the ideal time to address any roofing issues and avert more significant problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Face More Problems Than Pitched Roofs?

Flat roofs can indeed face more drainage challenges if they are not designed correctly. Without an adequate slope, water may pond or leak into the building structure. However, when constructed with the appropriate pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What Is the Optimal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and sealed properly against water. Anything below 5 degrees necessitates careful selection of materials and detailed guttering strategies to ensure effective drainage.

Is it Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are particularly well-suited for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Used on Flat Roofs?

Box gutters are internal roof gutters positioned below the roof line, often located between roof sections or along parapet walls. They are commonly utilised on flat roofs to effectively manage runoff, but they must be carefully sized and sloped to avoid blockages and overflow problems that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs typically necessitate higher-capacity gutters and larger downpipes to manage effective water drainage. Half-round gutters and 100x75mm downpipes are frequently employed to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters can be beneficial in minimising maintenance requirements.

What Is the Lifespan of a Flat Metal Roof?

When installed correctly, equipped with appropriate drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as necessary will significantly extend the roof's lifespan and performance.
